OLRC MR04

OLRC Kyosho Box Stock

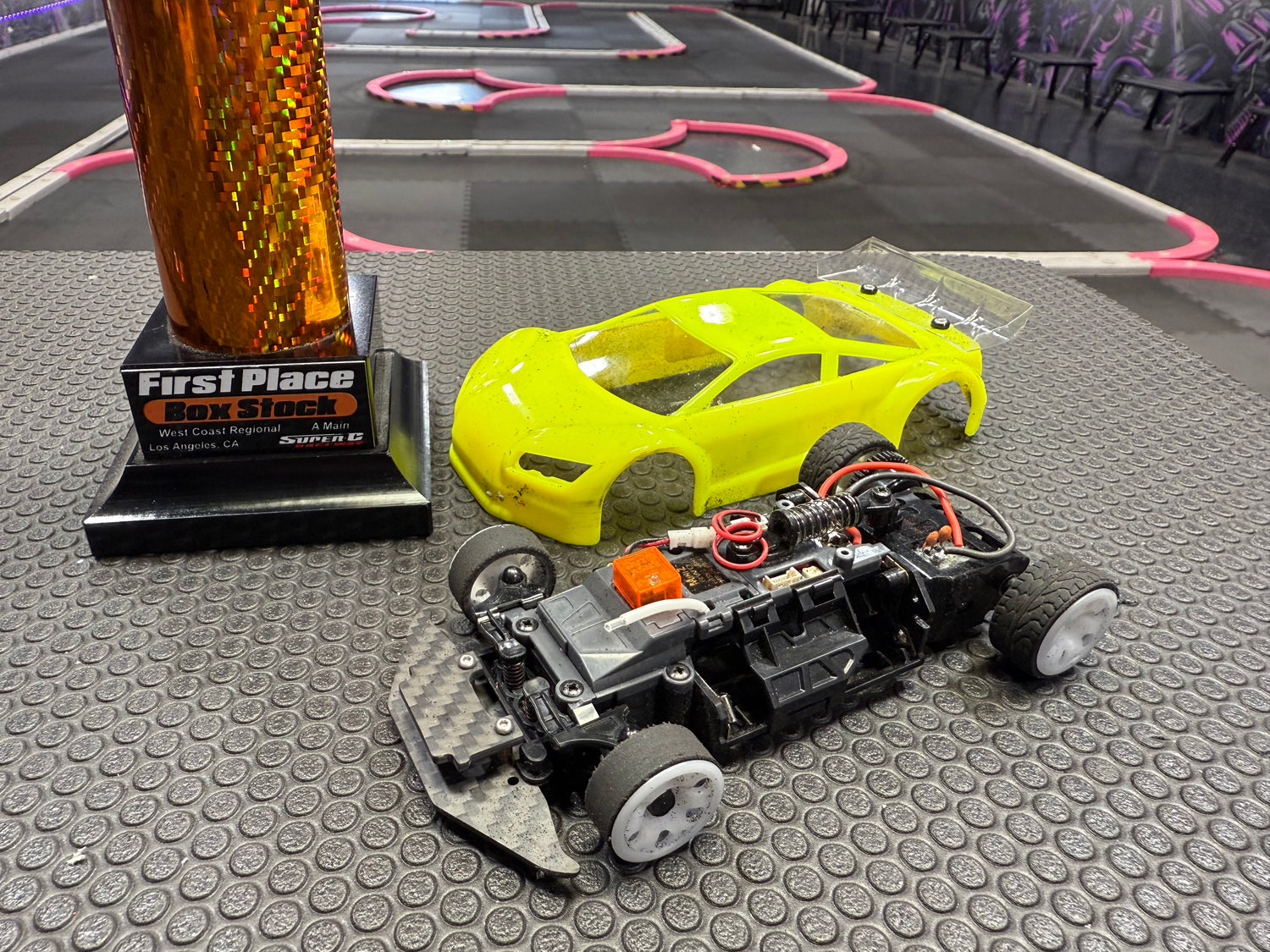

This is the car we won the 2025 West Coast Regional Championship .

The Setup

We started out with a Kyosho Readyset Audi R8 Box Stock Chassis. Then started adding the magic.

Body
1) Jomurema Body (jom280355 Yellow)
2) PN Racing Lexan Roof (LR950)
3) PN Racing Lexan Rear Wing (600640)
4) Marka Racing Products Carbon Fiber Front Bumper and Body Mount (MZR-2102)

Wheels and Tires
1) PN Racing KSK535 Front Low Profile Tires (KSK535)
2)PN Racing KSK2830 Rear Tires (KSK2830)
3) PN Racing 6 Spoke Delrin Flanged Front Wheel +1 Offset (MR2086F1)
4) PN Racing 6 Spoke Delrin Flanged Rear Wheel +2 Offset (MR2086R2)

Bearings
1) PN Racing 3x6x2.5mm Shield Hub Dry Ball Bearings (600126)

Suspension
1) PN Racing G10 Black Fiber Glass T-Plate #4 (MR3044K)
2) PN Racing Front Suspension Spring Set - Red (MR3010)


Tips and Tricks

Motor Break In
1) Used a single AAA battery, Fully Charged and powered the motor for 3 minutes.
No water or fluids were used.
2) Removed yellow heat cut off switch

Suspension Damping
1) 30k Grease in the center shock housung
2) Small piece of double sided tape under the front of the center shock
